Carrier removing machine

Your current location: Home >> Products >> Drive in racking

Carrier removing machine

Classification of the genus:Drive in racking
Click times:
Release date:2019/10/25
Online inquiry

Detailed introduction

Three dimensional carrier

Product introduction

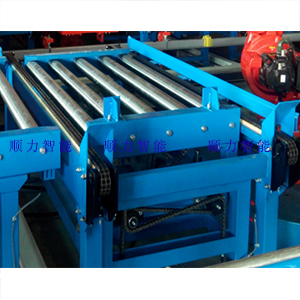

The utility model relates to a carrier removing machine, which is used for automatically conveying goods in an automatic warehouse, and has chain type, roller type, belt type and the like. The carrier is composed of a jacking mechanism and a conveying mechanism, and the two parts are respectively provided with an independent power assembly and a machine body, and the two parts are connected by connecting rods or linear bearings. The carrier carries the cargo units that are delivered to them, top off the original conveyor line, and then cross conveyor.

Product characteristics

1) cross freight units;

2) and roller, chain conveyor line supporting the use of;

產(chǎn)品性能

Serial number	project	Description
1	Main material	Q235
2	Number of handling units	Carry a cargo at a time
3	Handling unit size	Standard pallet 1200800/1000mm, material box 600400 or made as required
4	Cargo unit weight	10 ~ 2000kg or as required
5	Conveying speed	12m/min, optional frequency conversion speed regulation
6	Conveying mode	Chains, rollers, belts, rollers
7	positioning accuracy	±5mm
8	Communication mode	Wired
9	control mode	Manual, semi-automatic, online, fully automatic
10	supply voltage	Domestic standard industrial frequency power consumption, 3 phase, 380V, 50Hz
11	Power supply mode	Cable
