product description

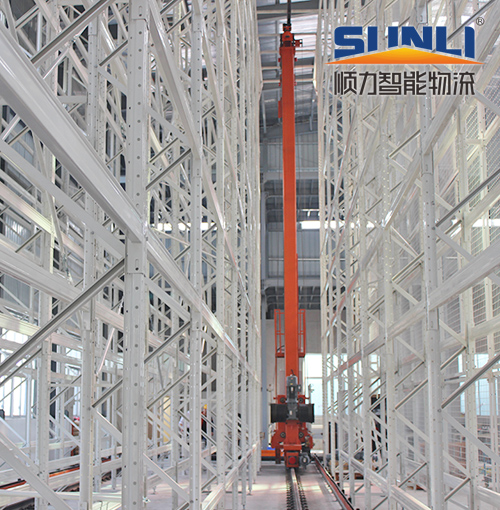

Single column stacker is the core of automated warehouse equipment, work not only requires accurate positioning fast, stable and reliable, but also must be safe and secure. The stacker consists of upper and lower beams, columns, loading stands, counterweight and various telegraph control elements. The stacker relies on the host to walk, and the cargo stand is lifted and the fork is extended to move the unit cargo in three directions of the warehouse, In order to achieve the task of placing the goods into / out of the shelves, the working capacity of the stacker determines the maximum capacity of the entire automated warehouse.
product features
1. Structure can be divided into single column stacker, double column stacker;
2. According to the different ways to pick up can be divided into single-span stacker and double-extension stacker;
3. Stacker and shelf with the use of up to 50 meters, the track can have a straight track, curved rail, fork rail;
4. Stacker in the positioning of the use of laser, bar code positioning to ensure its accuracy;
5. Speed control on the use of closed-loop frequency control or servo motor, so that smooth delivery, security;
6. Stacker in the use of electrical safety protection, such as mechanical stoppers, safety gears, torque limiter, emergency stop switch, speed limiter, broken chain (rope) protection, etc.
7. To ensure its safety performance stacking machine all electrical components are used high-quality into the brand products;
Product performance
序號 | 項 目 | 描 述 |
1 | 主體材質 | Q235，鋁型材 |
2 | 搬運單元數量 | 一般一次搬運一個單元，或按要求制做 |
3 | 搬運單元尺寸 | 標準托盤1200*800mm,1200*1000mm或按要求制做 |
4 | 單元貨物重量 | 10～2000kg或按要求制做 |
5 | 運行速度 | 5～240m/min,變頻調速 |
6 | 提升速度 | 5～50m/min，變頻調速 |
7 | 出叉速度 | 40m/min |
8 | 貨叉品牌 | 米亞斯或同級品牌或自己生產 |
9 | 定位精度 | ±5mm |
10 | 定位方式 | 激光認址或條碼定位 |
11 | 控制方式 | 手動，半自動，聯機全自動 |
12 | 電源電壓 | 國內標準工頻工業用電，3相，380V，50Hz |
13 | 供電方式 | 滑觸線 |
14 | 通訊方式 | 有線 |
